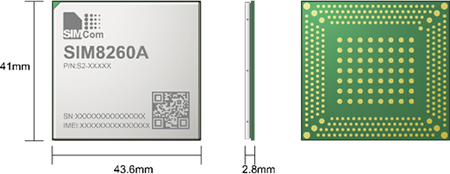

Authorized DistributorSIM8260A
The SIM8260A is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.
5GSub-6G SA: 2.4 DL/1 UL Gbps Sub-6G NSA: 3.4(DL)/0.6(UL) Gbps LTE: 1.6(DL)/0.2(UL) GbpsNoLCC+LGA
Stock
Out of stock
Lead Time
Confirmed on quote
MOQ
1 unit
Volume Pricing (USD)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $177.8571 | $177.86 |
| 10+ | $160.0714 | $1600.71 |
| 50+ | $151.1785 | $7558.93 |
| 250+ | $142.2857 | $35571.42 |
Order total (1 unit)$177.86
Technical Attributes
Key Specifications
Network Technology5G
Data RateSub-6G SA: 2.4 DL/1 UL Gbps Sub-6G NSA: 3.4(DL)/0.6(UL) Gbps LTE: 1.6(DL)/0.2(UL) Gbps
GNSS SupportNo
Form FactorLCC+LGA
Supply Voltage3.8V ~ 4.4V (3.3V typ)
Operating Temperature-30°C ~ +70°C
General
Dimensions43.6 × 41 × 2.8 mm
Frequency Bands27 bands
InterfacesUSB 3.1 ×1 · UART ×3 · I2C ×2 · GPIO ×10 · ADC ×2
CertificationsCE(RED), FCC, RoHS, REACH
Carrier ApprovalsT-Mobile, Verizon
Weight11.45 g
Country of OriginChina
FranchiseAuthorized
