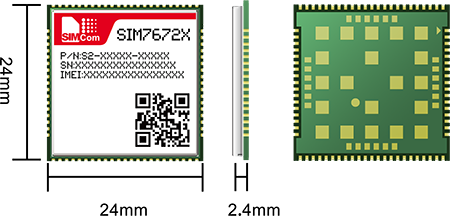

Authorized DistributorSIM7672G-MNGV
LTE Cat 1 module (with GNSS)
LTE Cat 110 DL/5 UL MbpsYesLCC + LGA
Stock
210 · low stock
Lead Time
Ships from stock
MOQ
1 unit
In stock in USA · 210 pcs ship from San Diego, CA
Volume Pricing (USD)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $17.6500 | $17.65 |
| 10+ | $15.8850 | $158.85 |
| 50+ | $15.0025 | $750.13 |
| 250+ | $14.1200 | $3530.00 |
Order total (1 unit)$17.65
Technical Attributes
Key Specifications
Network TechnologyLTE Cat 1
Data Rate10 DL/5 UL Mbps
GNSS SupportYes
Form FactorLCC + LGA
Supply Voltage3.4V ~ 4.2V (3.8V typ)
Operating Temperature-40°C ~ +85°C
General
Dimensions24 × 24 × 2.4 mm
Frequency Bands21 bands
InterfacesUSB 2.0 ×1 · UART ×3 · I2C ×1 · GPIO ×11 · ADC ×2
CertificationsFCC, GCF, PTCRB, UKCA, CE-RED, RCM, IC, NCC, KC, TELEC, JATE, ANATEL, 3C, CTA, SRRC, RoHS, REACH
Carrier ApprovalsAT&T, Verizon, T-Mobile
Weight2.83g
Country of OriginChina
RoHSCompliant
FranchiseAuthorized
