Franchise Authorized

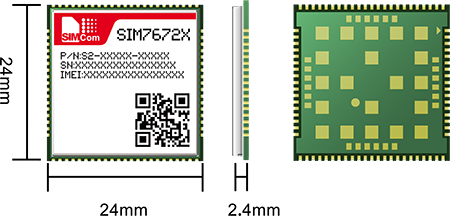

Authorized DistributorSIM7672E
The SIM7670/SIM7672 series is the LTE Cat 1bis module based on the latest QCX216 chipset that supports wireless communication modes of LTE-FDD/LTE-TDD. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
LTE10 DL/5 UL MbpsNoLCC+LGA
Stock
Out of stock
Lead Time
Confirmed on quote
MOQ
1 unit
Volume Pricing (USD)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $15.0000 | $15.00 |
| 10+ | $13.5000 | $135.00 |
| 50+ | $12.7500 | $637.50 |
| 250+ | $12.0000 | $3000.00 |
Order total (1 unit)$15.00
Technical Attributes
Key Specifications
Network TechnologyLTE
Data Rate10 DL/5 UL Mbps
GNSS SupportNo
Form FactorLCC+LGA
Supply Voltage3.4V ~ 4.2V (3.8V typ)
Operating Temperature-40°C ~ +85°C
General
Dimensions24 × 24 × 2.4 mm
Frequency Bands6 bands
InterfacesUSB 2.0 ×1 · UART ×3 · I2C ×1 · GPIO ×11 · ADC ×2
CertificationsCE-RED, UKCA, RCM, RoHS, REACH
Weight2.83g
Country of OriginChina
FranchiseAuthorized
