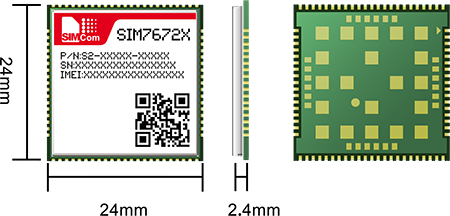

Authorized DistributorSIM7670G
The SIM7670/SIM7672 series is the LTE Cat 1bis module based on the latest QCX216 chipset that supports wireless communication modes of LTE-FDD/LTE-TDD. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
LTE10 DL/5 UL MbpsNoLCC+LGA
Stock
Out of stock
Lead Time
Confirmed on quote
MOQ
1 unit
Volume Pricing (USD)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $26.0500 | $26.05 |
Order total (1 unit)$26.05
Technical Attributes
Key Specifications
Network TechnologyLTE
Data Rate10 DL/5 UL Mbps
GNSS SupportNo
Form FactorLCC+LGA
Supply Voltage3.4V ~ 4.2V (3.8V typ)
Operating Temperature-40°C ~ +85°C
General
Dimensions24 × 24 × 2.4 mm
Frequency Bands21 bands
InterfacesUSB 2.0 ×1 · UART ×3 · I2C ×1 · GPIO ×11 · ADC ×2
CertificationsFCC, GCF, PTCRB, UKCA, CE-RED, RCM, IC, NCC, KC, TELEC, JATE, ANATEL, 3C, CTA, SRRC, RoHS, REACH
Carrier ApprovalsAT&T, Verizon, T-mobile
Weight2.83g
Country of OriginChina
FranchiseAuthorized
