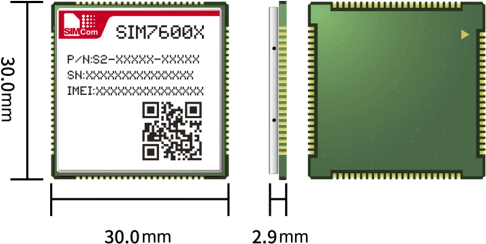

Authorized DistributorSIM7600NA
The SIM7600 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
LTE Cat 110 DL/5 UL MbpsNoLCC
Stock
Out of stock
Lead Time
Confirmed on quote
MOQ
1 unit
Volume Pricing (USD)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $37.1429 | $37.14 |
| 10+ | $33.4286 | $334.29 |
| 50+ | $31.5715 | $1578.58 |
| 250+ | $29.7143 | $7428.58 |
Order total (1 unit)$37.14
Technical Attributes
Key Specifications
Network TechnologyLTE Cat 1
Data Rate10 DL/5 UL Mbps
GNSS SupportNo
Form FactorLCC
Supply Voltage3.4V ~ 4.2V (3.8V typ)
Operating Temperature-40°C ~ +85°C
General
Dimensions30 × 30 × 2.9 mm
Frequency Bands11 bands
InterfacesUSB 2.0 ×1 · UART ×1 · I2C ×1 · GPIO ×5 · ADC ×2
CertificationsFCC, PTCRB, RoHS, REACH, IC, GFC
Carrier ApprovalsAT&T, Verizon, T-Mobile, US Cellular
Weight5.7 g
Country of OriginChina
