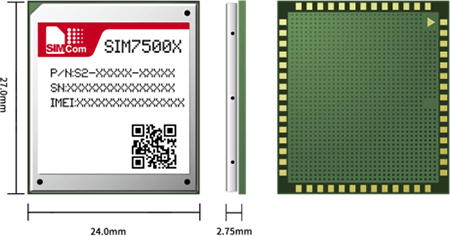

Authorized DistributorSIM7500A
The SIM7500 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
LTE Cat 110 DL/5 UL MbpsNoLCC
Stock
Out of stock
Lead Time
Confirmed on quote
MOQ
1 unit
Volume Pricing (USD)
| Quantity | Unit Price | Ext Price |
|---|---|---|
| 1+ | $26.4286 | $26.43 |
Order total (1 unit)$26.43
Technical Attributes
Key Specifications
Network TechnologyLTE Cat 1
Data Rate10 DL/5 UL Mbps
GNSS SupportNo
Form FactorLCC
Supply Voltage3.4V ~ 4.2V (3.8V typ)
Operating Temperature-40°C ~ +85°C
General
Dimensions27 × 24 × 2.75 mm
Frequency Bands4 bands
InterfacesUSB 2.0 ×1 · UART ×1 · I2C ×1 · GPIO ×2 · ADC ×1
CertificationsRoHS, REACH, FCC, PTCRB, IC
Carrier ApprovalsAT&T, ROGERS
Weight4 g
Country of OriginChina
