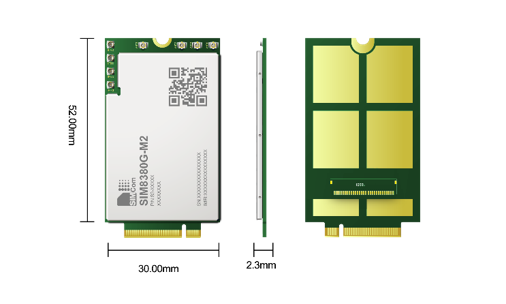

The SIM8380G-M2 is the Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 70° C |
| Ambient Temperature Range Low | -30° C |
| Length | 53 mm |
| Weight | 8.6 g |
| Width | 30 mm |
| Thickness | 2.3 mm |
| Number of Bands | 40 |
| USB Standard | 3.1 |
| Nominal Input Voltage | 3.3 |
| Approvals – Regulatory | CE(RED), FCC, RoHS, REACH |
| Connector Type | M2 |
| Country of Origin | China |
| Max Input Voltage | 4.4 |
| Min Input Voltage | 3.135 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| Number of USB Channels | 1 |
| Mount | M2 |
| Data Rate | mmWave: 7(DL)/3(UL) Gbps Sub-6G: 4(DL)/1(UL) Gbps LTE: 2(DL)/0.2(UL) Gbps HSPA+: 4(DL)/5.76(UL) Mbps |
