SIM7912X is the LTE Cat 12 module which supports wireless communication modes of LTE-TDD/LTE- FDD/HSPA+. It supports maximum 600Mbps downlink rate and 150Mbps uplink rate.
| Part Number | SIM7912A | |
| Manufacturer | SIMCom | |
| Description | SIM7912X is the LTE Cat 12 module which supports wireless communication modes of LTE-TDD/LTE- FDD/HSPA+. It supports maximum 600Mbps downlink rate and 150Mbps uplink rate. |
|
| Category | IoT Modules | |
| Lead Time | 8 weeks | |
| Country of Origin | ||
| Datasheet | Datasheet | |
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 70° C |
| Ambient Temperature Range Low | -30° C |

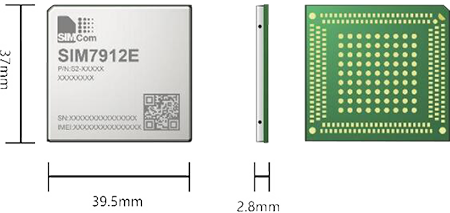

| Length | 39.5 mm |
| Weight | 8.4 g |
| Width | 37 mm |
| Thickness | 2.8 mm |
| Number of Bands | 18 |
| USB Standard | 3.0 |
| Nominal Input Voltage | 3.3 |
| Approvals - Carrier | T-Mobile, Verizon |
| Approvals – Regulatory | FCC, PTCRB, RoHS, REACH |
| Connector Type | LGA |
| Country of Origin | China |
| Max Input Voltage | 4.4 |
| Min Input Voltage | 3.135 |
| Number of A/D Converters | 2.0 |
| Number of Analog Inputs | 2.0 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 3 |
| Number of USB Channels | 1 |
| Mount | SMD |
| Data Rate | LTE: 600(DL)/150(UL) Mbps HSPA+: 42Mbps (DL)/11.2(UL) Mbps |
| Number of ADC Channels | 2.0 |
| Number of GPIO | 5.0 |
ADD TO CART
0
On Stock
