The SIM7600 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.

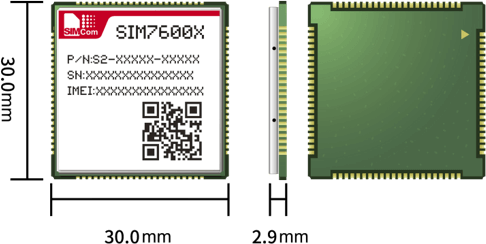

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 85° C |
| Ambient Temperature Range Low | -40° C |
| Length | 30 mm |
| Weight | 5.7 g |
| Width | 30 mm |
| Thickness | 2.9 mm |
| Number of Bands | 11 |
| USB Standard | 2.0 |
| Current | LTE Sleep 2.3 mA LTE Idle 17.5 mA |
| Nominal Input Voltage | 3.8 |
| Approvals - Carrier | AT&T, Verizon, T-Mobile, US Cellular |
| Approvals – Regulatory | FCC, PTCRB, RoHS, REACH, IC, GFC |
| Connector Type | LCC |
| Country of Origin | China |
| Max Input Voltage | 4.2 |
| Min Input Voltage | 3.4 |
| Number of A/D Converters | 2.0 |
| Number of Analog Inputs | 2.0 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| Number of USB Channels | 1 |
| Mount | SMD |
| Data Rate | LTE: 10(DL)/5(UL) Mbps |
| Number of ADC Channels | 2.0 |
| Number of GPIO | 5.0 |
