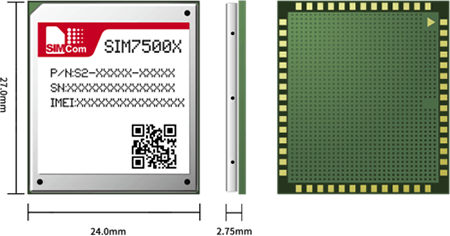

The SIM7500 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
| Part Number | SIM7500AD | |
| Manufacturer | SIMCom | |
| Description | The SIM7500 series is the LTE Cat 1 module which supports wireless communication modes of LTE-TDD/ LTE-FDD/HSPA+/GSM/GPRS/EDGE etc. It supports maximum 10Mbps downlink rate and 5Mbps uplink rate. |
|
| Category | IoT Modules | |
| Lead Time | 8 weeks | |
| Country of Origin | ||
| Datasheet | Datasheet | |
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 85° C |
| Ambient Temperature Range Low | -40° C |
| Length | 24 mm |
| Weight | 4 g |
| Width | 27 mm |
| Thickness | 2.75 mm |
| Number of Bands | 4 |
| USB Standard | 2.0 |
| Current | Sleep 2.3 mA Idle 17.5 mA |
| Nominal Input Voltage | 3.8 |
| Approvals - Carrier | T-Mobile, US Cellular |
| Approvals – Regulatory | RoHS, REACH, FCC, PTCRB, IC |
| Connector Type | LCC |
| Country of Origin | China |
| Max Input Voltage | 4.2 |
| Min Input Voltage | 3.4 |
| Number of A/D Converters | 1.0 |
| Number of Analog Inputs | 1.0 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| Number of USB Channels | 1 |
| Mount | SMD |
| Data Rate | LTE: 10(DL)/5(UL) Mbps HSPA+: 42(DL)/5.76(UL) Mbps WCDMA: 384(DL)/384(UL) Kbps |
| Number of ADC Channels | 1.0 |
| Number of GPIO | 2.0 |
ADD TO CART
0
On Stock
