  2. The SIM7080G is Multi-Band CAT-M and NB-IoT module solution

Alternative for: Quectel BG950SGL00AA-8N-SGNSA

Zephyr Technologies is a Phoenix,AZ based franchised distributor of electronic components.Overnight shipping MC/Visa/Paypal.
Cost: $ 13.3571 On Stock:
100
Product Image Product Image
Cost 15.71429 24.10624
Mfr Part # SIM7080G BG950SGL00AA-8N-SGNSA
Manufacturer SIMCom Quectel
Quantity Available 100.0 0.0
Mount SMD Surface Mount
Ambient Temperature Range Low -40° C -40°C
Current PSM: 3.2 µA Sleep 0.6 mA Idle 10 mA -
Nominal Input Voltage 3.8 3.2V ~ 4.2V
USB Standard 2.0 Yes
Ambient Temperature Range High 85° C 85°C

TAKE A LOOK TO THE MOST APROXIMATE PRODUCT

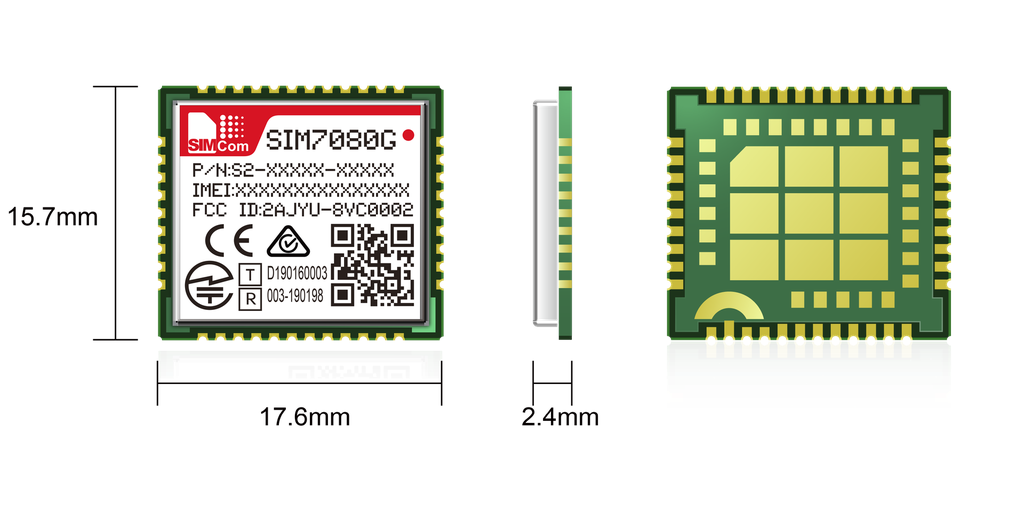

The SIM7080G is Multi-Band CAT-M and NB-IoT module solution

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Part Number SIM7080G
Manufacturer SIMCom
Description

CAT M, NB-IOT w/GNSS Data and GNSS not simultaneous 17.6mm x 15.7mm
Category IoT Modules
Lead Time 8 weeks
Country of Origin China
Datasheet Datasheet

Product Attributes

TYPE DESCRIPTION
Ambient Temperature Range High 85° C
Ambient Temperature Range Low -40° C
Length 17.6 mm
Weight 1.4±0.2g
Width 15.7 mm
Thickness 2.4 mm
Number of Bands 19
USB Standard 2.0
Current PSM: 3.2 µA Sleep 0.6 mA Idle 10 mA
Nominal Input Voltage 3.8
Approvals - Carrier Docomo, KDDI, Softbank, Deutsche Telekom, AT&T, Verizon, T-Mobile, US Cellular
Approvals – Regulatory RoHS, REACH, JATE, Telec, RCM, CE(RED), GCF, FCC, PTCRB, IC
Connector Type LCC + LGA
Country of Origin China
Max Input Voltage 4.8
Min Input Voltage 2.7
Number of A/D Converters 1.0
Number of Analog Inputs 1.0
Number of I2C Channels 1
Number of UART Channels 1 full channel 2 used as UART in DAM applications
Number of USB Channels 1
Mount SMD
Data Rate Cat-M 589(DL)/1119(UL) kbps Cat-NB 136(DL)/150(UL) kbps
Number of ADC Channels 1.0
Number of GPIO 5.0

ADD TO CART

100
On Stock

$ 15.71429 15.714290000000002 USD $ 15.71429

$ 15.71429

Not Available For Sale

Shipping from

CenHK/Stock

  • Ambient Temperature Range High
  • Ambient Temperature Range Low
  • Length
  • Weight
  • Width
  • Thickness
  • Number of Bands
  • USB Standard
  • Current
  • Nominal Input Voltage
  • Approvals - Carrier
  • Approvals – Regulatory
  • Connector Type
  • Country of Origin
  • Max Input Voltage
  • Min Input Voltage
  • Number of A/D Converters
  • Number of Analog Inputs
  • Number of I2C Channels
  • Number of UART Channels
  • Number of USB Channels
  • Mount
  • Data Rate
  • Number of ADC Channels
  • Number of GPIO

This combination does not exist.

Quantity
Add to cart
The minimum of units 50. Futhermore, this product is sell in units of 50.
Contact Us
Bag
QUANTITY UNIT Price EXT PRICE
50 (SPQ) $ 15.7143 $ 785.71
10 $ 14.7243 $ 147.24
25 $ 14.3786 $ 359.46
50 $ 13.8600 $ 693.00
100 $ 13.5457 $ 1354.57
150 $ 14.7243 $ 2208.64
200 $ 13.3571 $ 2671.43
