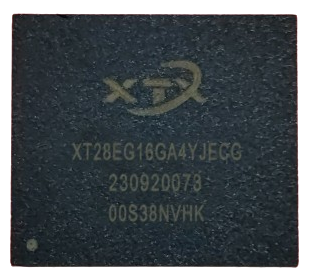

16GByte EMMC5.1, BGA153 11.5X13X1.0mm
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 85 °C |
| Ambient Temperature Range Low | -25 °C |
| ESD Protection | Yes |
| Flash Memory Size | 16 GByte |
| Frequency | 200MHz |
| Life (Cycles) | / |
| Life (Hours) | 175,200 hours |
| Max Frequency | 200MHz |
| Min Operating Temperature | -25 °C |
| Min Supply Voltage | 2.7 V |
| Non-volatile Memory Size | 16 GByte |
| Number of I/Os | 8 |
| Number of Pins | 153.0 |
| Operating Supply Voltage | VCCQ =1.8V/3.3V VCC = 3.3V |
| Packaging | Tray |
| Page Size | / |
| RoHS | Compliant |
| Speed - Read | 307MB/s |
| Speed - Write | 135MB/s |
| Voltage | VCCQ =1.8V/3.3V VCC = 3.3V |
| Memory Type | NAND |
| Memory Size | 16 GByte |
| Max Operating Temperature | 85 °C |
ADD TO CART
0.0
On Stock
