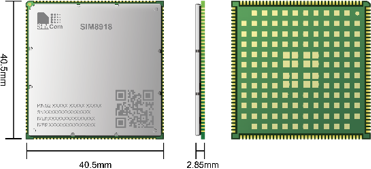

The SIM8918 series is the LTE Cat 4 smart module with Android system, it adopts Qualcomm 4-core 64-bit ARM Cortex-A53 processor, with frequency up to 2.0GHz and AdrenoTM 702 GPU. It supports multiple high resolution camera and single screen display, and has powerful high data transfer and multimedia processing capability. With smart module operation system and high performance advantage, the module is ideal for rapid development of multimedia wireless communication products and applications.
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 75° C |
| Ambient Temperature Range Low | -35° C |
| Flash Memory Size | 16 GB or 32 GB |
| Length | 40.5 mm |
| Weight | 10.5 g |
| Width | 40.5 mm |
| Thickness | 2.85 mm |
| Number of Bands | 12 |
| USB Standard | 3.1 |
| Nominal Input Voltage | 3.8 |
| Approvals – Regulatory | RoHS, REACH, CCC, SRRC |
| Connector Type | LCC+LGA |
| Country of Origin | China |
| Max Input Voltage | 4.4 |
| Min Input Voltage | 3.4 |
| Number of A/D Converters | 1.0 |
| Number of Analog Inputs | 1.0 |
| Number of I2C Channels | 8 |
| Number of UART Channels | 3 |
| Number of USB Channels | 1 |
| Number of Cores | 4.0 |
| Memory Size | 2 GB |
| Mount | SMD |
| Data Rate | LTE: 150(DL)/50(UL) Mbps HSPA+: 42(DL)/5.76(UL) Mbps WCDMA: 384(DL)/384(UL) kbps GSM: 107(DL)/85.6(UL) kbps |
| Number of ADC Channels | 1.0 |
| Number of GPIO | 33.0 |
