  2. SIM8260G-M2 is a Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.


SIM8260G-M2 is a Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.

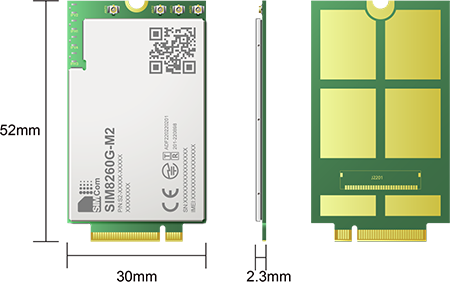

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Part Number SIM8260G M2
Manufacturer SIMCom
Description

SIM8260G-M2 is a Multi-Band 5G NR/LTE-FDD/LTE-TDD/HSPA+ module which supports R16 5G NSA/SA.
Category IoT Modules
Lead Time 8 weeks
Country of Origin
Datasheet Datasheet

Product Attributes

TYPE DESCRIPTION
Ambient Temperature Range High 85° C
Ambient Temperature Range Low -40° C
Length 52 mm
Width 44.6
Thickness 3.7 mm
Number of Bands 34
USB Standard 3.1
Nominal Input Voltage 3.3
Approvals – Regulatory CE(RED), FCC, RoHS, REACH
Connector Type M2
Country of Origin China
Max Input Voltage 4.4
Min Input Voltage 3.135
Number of I2C Channels 1
Number of UART Channels 1
Number of USB Channels 1
Mount M2
Data Rate SA: 2.5(DL)/0.9(UL) Gbps NSA: 3.47(DL)/0.46(UL) Gbps LTE: 1.6(DL)/0.2(UL) Gbps HSPA+: 42(DL)/5.76(UL) Mbps
