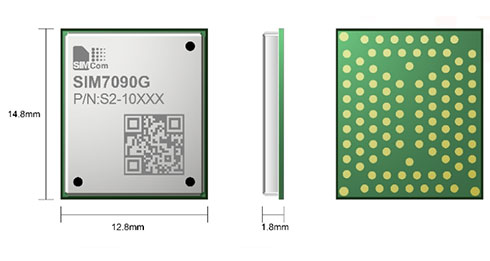

SIM7090 is the LPWA module which supports wireless communication modes of Cat-M/Cat-NB.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Product Attributes
| TYPE | DESCRIPTION |
|---|---|
| Ambient Temperature Range High | 85° C |
| Ambient Temperature Range Low | -40° C |
| Length | 14.8 mm |
| Weight | 0.8±0.2g |
| Width | 12.8 mm |
| Thickness | 1.8 mm |
| Number of Bands | 19 |
| USB Standard | 2.0 |
| Current | PSM: 3.2 µA Sleep 0.8 mA Idle 10 mA |
| Nominal Input Voltage | 3.8 |
| Approvals - Carrier | AT&T, Verizon, T-Mobile |
| Approvals – Regulatory | FCC, IC, CE, RCM, JATE, TELEC, GCF, PTCRB, RoHS, REACH |
| Connector Type | LGA |
| Country of Origin | China |
| Max Input Voltage | 4.8 |
| Min Input Voltage | 2.7 |
| Number of A/D Converters | 2.0 |
| Number of Analog Inputs | 2.0 |
| Number of I2C Channels | 1 |
| Number of UART Channels | 1 |
| Number of USB Channels | 1 |
| Mount | SMD |
| Data Rate | Cat-M 589(DL)/1119(UL) kbps Cat-NB 127(DL)/158.5(UL) kbps |
| Number of ADC Channels | 2.0 |
| Number of GPIO | 3.0 |
