  2. The SIM7070 series is the LPWA module which supports wireless communication modes of Cat- M/Cat-NB/GPRS/EDGE.


The SIM7070 series is the LPWA module which supports wireless communication modes of Cat- M/Cat-NB/GPRS/EDGE.

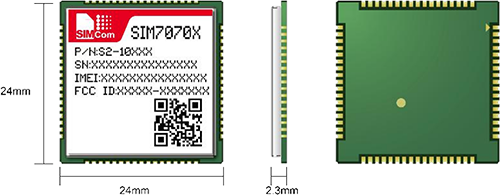

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Part Number SIM7070G
Manufacturer SIMCom
Description

CAT M, NB-IOT and 2G, w/GNSS Data and GNSS not simultaneous 24mm x 24mm
Category IoT Modules
Lead Time 8 weeks
Country of Origin China
Datasheet Datasheet

Product Attributes

TYPE DESCRIPTION
Ambient Temperature Range High 85° C
Ambient Temperature Range Low -40° C
Length 24 mm
Weight 2.9±0.2g
Width 24 mm
Thickness 2.3 mm
Number of Bands 23
USB Standard 2.0
Current PSM: 3.2 µA Sleep 0.8 mA Idle 10 mA
Nominal Input Voltage 3.8
Approvals - Carrier Deutsche Telekom, AT&T, VERIZON, T-MOBILE US, US Cellular, ROGERS, TELSTRA, VDF, SoftBank, DoCoMo, KDDI*
Approvals – Regulatory FCC, IC, CE, RCM, JATE, TELEC, NCC, ANATEL*, GCF, PTCRB, RoHS, REACH
Connector Type LCC
Country of Origin China
Max Input Voltage 4.6
Min Input Voltage 3.0
Number of A/D Converters 1.0
Number of Analog Inputs 1.0
Number of I2C Channels 1
Number of UART Channels 1 full channel 2 used as UART in DAM applications
Number of USB Channels 1
Assembly Length 24 mm
Mount SMD
Data Rate Cat-M 589(DL)/1119(UL) kbps Cat-NB 127(DL)/158.5(UL) kbps EGPRS 296(DL)/236.7(UL) kbps
Number of ADC Channels 1.0
Number of GPIO 7.0

ADD TO CART

151
On Stock

$ 17.14286 17.142860000000002 USD $ 17.14286

$ 17.14286

Not Available For Sale
